Product Description

Digital Eagle cameras are suitable for the environment that requires a higher level surveillance protection, with water-proof dust-proof and salt fog-proof features. The cameras are integrated with high-definition visible light, infrared thermal imaging and auto tracking finder modules. The cameras can achieve day and night vision surveillance, temperature measurement, target tracking and other additional features, greatly facilitating the system used in various industries.

Digital Eagle cameras can be mounted on multi-rotor drones, fixed wing drones, VTOL drone, helicopter, aircraft and other types of flying vehicles.

Technical Data Sheet

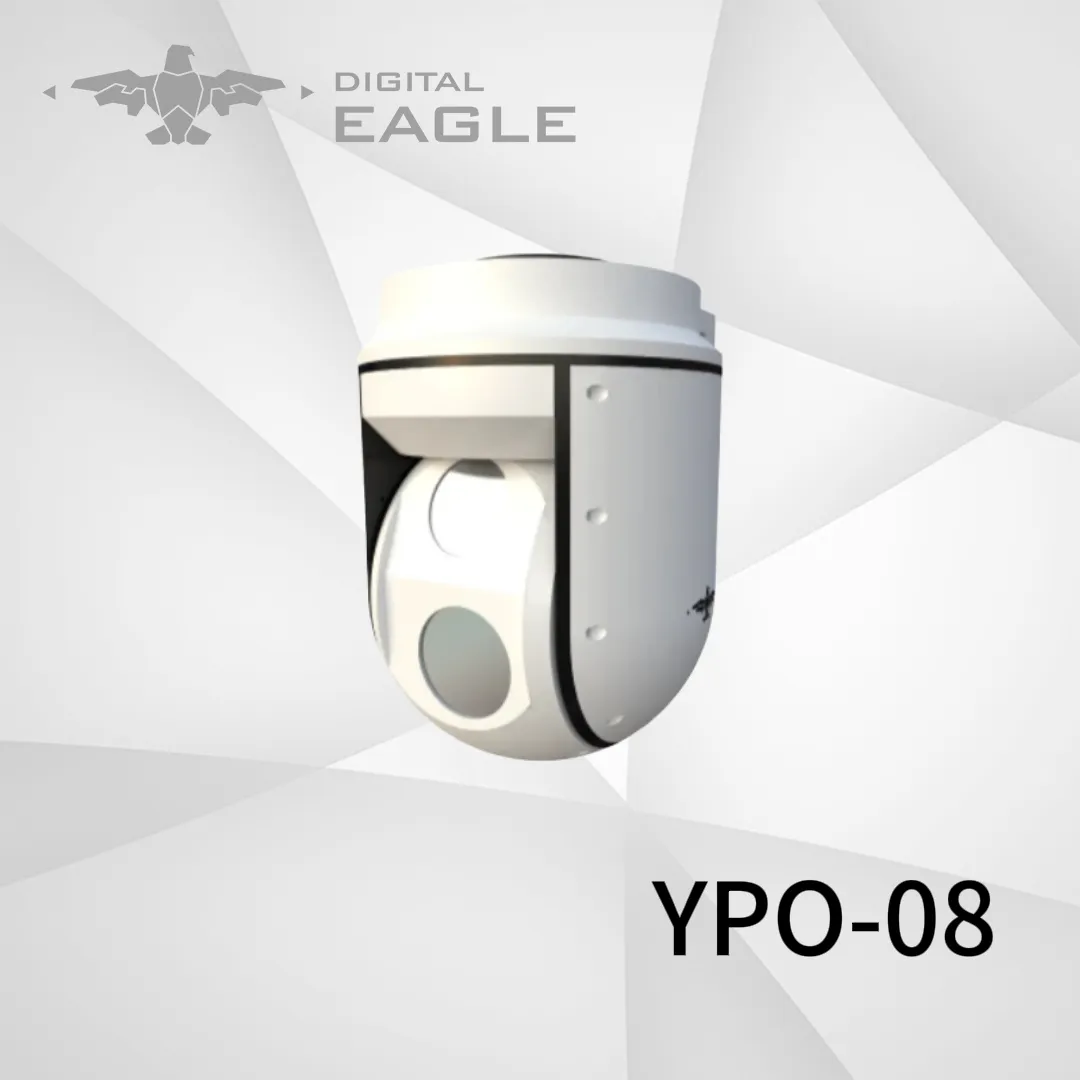

Model	YPO-08 EO/IR Dual Lights Camera
Material Science	ABS
Size	113mm123mm155mm
Transaction mode	50% T/T in advance, 50% T/T before loading
Delivery time	2 weeks
Packing	Aviation aluminum box
Color	White/Black/Yellow
Place of origin	Wuxi, China
Minimum order quantity	1 unit

Two-Axis zoom infrared thermal imaging camera for Drone UAV

TIE Digital Image Detail Enhancement Technique with Edge Sharpening

Image noise reduction:Digital filtering
Field of view angle 19.5°x14.7°（32.0°x24.2°）

Technical Data Sheet

Visible light parameter

Optical zoom factor	10x zoom	Video format	1080p
Pixels	2 million pixels	Lens focal length	F=4.9mm(wide-angle)to 49mm(remote)
Temperature range	-20 degree ~ 60 degree	Power consumption	2.9 W (zoom work/no focus ) 3.7 W (zoom and focus both work)

Physical electrical performance parameter

Stability system	Directional pitch two axis structure	Various rotation angles	Pitch +30°~-90, Yaw 360°
Stable accuracy	Better than 0.1 degree	Power supply	12v DC input, total power consumption is less than 15w
Speed range	The maximum rotational angular speed is 30 degree /s, the	Diameter	113mm
Minimum steady angular velocity is less than 1 degree/s		Stability system	Two axis structure
Weight	<900g	Size	113mm123mm155mm

Thermal imaging parameter

Pixels	640*480	Wavelength range	8~14μm
Power consumption	2.5W	NETD	≤50mk@25℃
Image noise reduction	Digital filtering	Frame rate	50Hz
Video output	HDMI	Mage enhancement	TIE Digital Image Detail Enhancement Technique with Edge Sharpening
Operating temperature	-20℃~+60℃	Humidity	≤95%( Non-condensing)
Electronic zoom	2x 4x 8 /16x Electronic zoom	Field of view angle	19.5*14.7

Laser Rrange Finder Parameter

Range	5-3000m	Beam Divergence	3mrad
Resolution	0.5m	Frame rate	50Hz
Beam	905nm pulse laser	Video output	HDMI

Wide Application

Daytime image with 10x optical zoom
One key switch to thermal lens
Thermal image for night vision,picture in picture
Target tracking for security monitor

Product Features

YPO-08 Drone Accessories HD EO/IR 2 Axis Drone Camera

Both daytime and night imaging

Point zoom tracking

Real time video transmission to command center

Mounted on multi-rotor drones/fixed-wing drone

Company Introduction

Features

Flight Mode Control
Support The Fixed Wing Vertical Takeoff And Landing : Greatly Reduce Dependence On The Site, Ejection Rack, Parachute, Etc., And The Operating Site Is Wide Adapted.Dual-Redundancy GNSS Positioning.
Video Camera Control
Support Real-Time Monitor Height And Distance,GPS Star Number, Flight Status Real-Time Dispay.Real-Time Display Flying Height, Distance, Heading Angle.Support The Fist View Monitoring.
One Key Return
Out Of Control Return, Flight Direction Lock, Law Battery Alarm And Data Recorder.Manual Stability, Autonomous Take-Off/Landing,Flying Attitude Stability/GPS Attitude Stability.
Waypoint Route Planning
Built-In Black Box Data Recording Function, Can Be Recorded About 60 Minutes Of Flight Data. Support For Connecting External Data Loggers, Record Up To 2000 Hours Of Flight Data.

FAQ

Which certificate do you have for your equipment?

We have ISO9001, ISO14001, CE certificate

1
How do you pack the equipment?

We pack our UAV in customized aviation aluminium cases

2
If OEM is acceptable?

Yes. We can do OEM.

3
What is your term of payment?

50% T/T in advance, 50% T/T before delivery

4
What's your advantage compared with other suppliers?

Own R&D center, five factories in China- More than 400 patents. - Professional teams - Long time practical experiences - Global markets coverage

5
How do you provide training service?

All our products are modular-design, which is easy to operate and maintain for anyone from anywhere. We also provide on-line courses and 3-5 day on-site training in our company. Every client will be required to pass the exam before operating.
