QR-10 Portable Unmanned Aerial Vehicle Interference System

Cover 100% Drones UAVs
Directional Jamming range: 1500~3000 Meters
Built-in Battery +24V / 20AH LiFePO4 can work 1 Hour
Power supply: AC110 or 220-240V /DC 27V

Quantity:

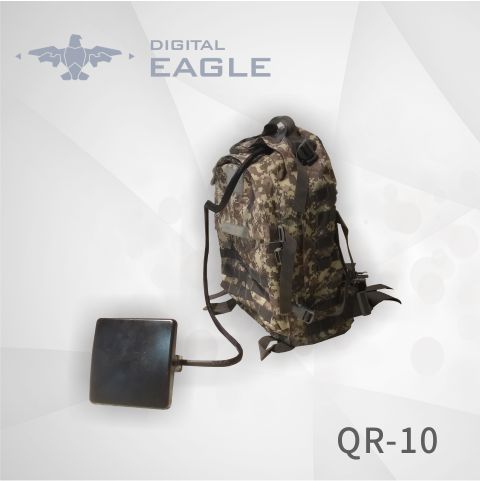

QR-10 Anti Drone Jammer.jpg


Features:

Cover 100% Drones UAVs
Directional Jamming range: 1500~3000 Meters
Built-in Battery +24V / 20AH LiFePO4 can work 1 Hour

Power supply: AC110 or 220-240V /DC 27V

Max Jamming range radius 5000m+

100% Safe VSWR over protection (Isolator) for each modular


- Standard Version (Three below Bands in One Directional Antenna)
1. 2.4-2.5GHz WiFi 11.g, b, Bluetooth  40W
2. 1570-1620MHz GPS L1 + GLONASS L1 :20W
3. 5.7GHz-5.9GHz 5.8GHz  10W
TOTAL: 65W



Other frequency and power needed, can further Customize the jammers based on your demand.

Below model with 10w, 20w, 50w, 100w optional.

1.GPS L1 1575.42MHz

2.GPS L2 1227.60MHz

3.GPS L3 L4 1379-1382MHz

4.GPS L5 1176.45MHz

5.Lojack 173MHz

6.LONASS 1610-1670MHz

7.WIFI 2400-2500MHz

8.Cell GSM 800/900Mhz

9.2G DCS PCS 1800-1890MHz

10.3G 2100-2170MHz 3W

11.4G LTE WiMax

12.4G LOW WiMax

13.5.8G


With the popularity of UAVs, due to the low cost of consumer unmanned aerial vehicles, easy access, simple control, with many UAV manufacturers to enter the market, making commercial unmanned aerial vehicles quickly into the civilian areas, the number of users gradually increased, Difficult, can easily be used by lawless elements, to security, confidential work to bring a lot of pressure. In the international field, for the UAV phenomenon has taken the relevant preventive measures, but the domestic UAV monitoring is still in a blank state, if not take the appropriate prevention and control measures, illegal unmanned aerial vehicles will be to the air supervision, Air safety caused great hidden dangers, unmanned aerial vehicle detection and tracking device can effectively control the UAV illegal flying.



Application:

Protection of domestic prohibited areas, such as: prison, military management area, national strategic resources projects, nuclear industry facilities, airports, political and other regions;

To prevent the scene of information leakage, such as: the scene of major criminal cases, urban management law enforcement scene, an important security venues, political followers protection, large-scale performance rehearsal, archaeological excavation site, large groups event site;

Combat the use of unmanned aerial vehicles as a carrier of illegal activities, such as: transport / drug trafficking, smuggling, illegal goods or information transmission.

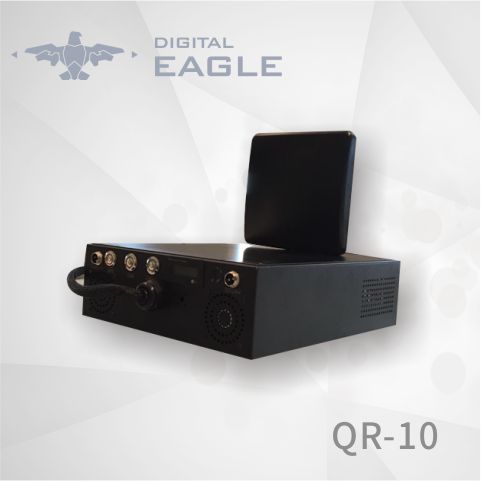

QR-10 2.png


QR series of portable unmanned aerial vehicle interference equipment is mainly through the launch of high-power electromagnetic waves, the flight of the UAV control, remote cut off the connection between unmanned aerial vehicles and remote control. Can be on the UAV in situ landing or return to the starting point of the functional control, security areas within the low-altitude airspace security.

Product description:

1. Composition: Interception system host, antenna part, charging power;

2. Portable design: backpack design, easy to carry;

3. Control mode: Landing or returning to takeoff;

4. The most remote control distance: 3000 meters (covering the entire low open area);

5. Built-in high-capacity lithium battery: can be used in any place, lithium battery for equipment to work for 60 minutes;

6. Simple operation: different bands of free control switch, shot down, drive away from the two modes of free choice;

7. Appearance: light box design, portable lightweight;

8. Strike object: the use of remote control remote control, GPS, Beidou, Galileo, GLONASS and other equipment navigation and 2.4G and 5.8G communication equipment.


Product main performance indicators:

1.farthest control distance: 3000 meters (covering the entire low open area);

2. built-in high-capacity lithium battery: working time 60 minutes;

3.portable operation: backpack, portable design;

4.control mode: button-type targeted frequency band interference, the UAV can land or return to the starting point;

5.host weight: 10.5 kg;

6. host size: total length of 37.5cm, the widest 29cm, the highest 10cm;

7.host structure: high-strength metal material;

8. Use ambient temperature: -35 ℃ / +50 ℃.


QR-10.pdf
